FAS 15-250 KW

The FAS product range includes air cooled, single stage silenced and packaged screw compressors in the power range of 15-250kW. These compressors are designed for industrial application and 24x7 continuous duty. All models are driven by highly efficient IE3 efficiency class electric motors.

Features & Benefits :

Features

  • Compact and accessible design
  • Reliable EUCOMP airend
  • Technology
  • IE3 premium efficiency drive
  • Optimum assembly of air-end and motor
  • Generous designed aluminium cooler

Adavantages

  • Small footprint + easy to maintain
  • Proven technology with high volume flow
  • Developed for high loads
  • Low speed operation
  • Ambient temperatures up to 45°C

Benefits

  • Quick installation and low service costs
  • High reliability for demanding industries
  • Durable and energy cost saving operation
  • Long lifetime
  • Risk free operation

Brochure

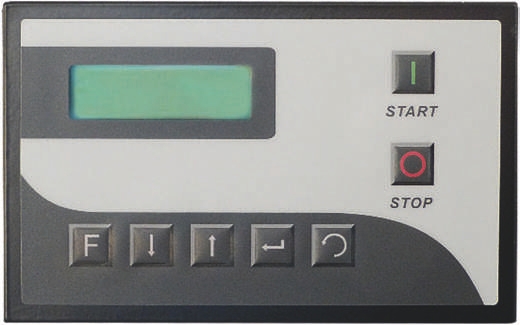

CONTROLLER

With the intelligent compressor control, you have full control over the operating status: maintenance indication and fault indication. The control also features fully automatic full load, idle and intermittent control as well as remote on/off and direction control.

EXCELLENT QUALITY

High quality components in combination with decades of experience in building air ends ensure durability with constantly high efficiency.

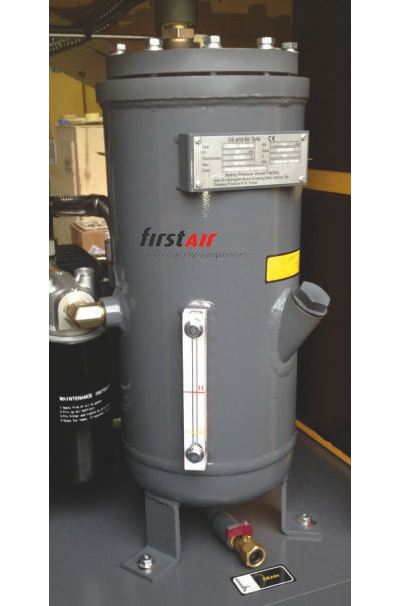

INTEGRATED OIL SEPARATOR IN THE DIL TANK

The large oil tank is equipped with all necessary connections and safety installations and therefore ensures the highest operational safety. The internal high efficiency oil separator guarantees excellent compressed air quality with a remaining oil content of 3mg/m³.

Through an inspection glass the oil level can be controlled at all times. Service can be conducted quickly and safely-the inlet neck as well as the oil drain valve can be easily accessed.

HIGH PERFORMANCE SUCTION FILTER

In all models a high performance suction filter is installed. Sucked particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.

ELECTRIC MOTOR

The driving motor conforms to energy efficiency class IE3, protection class IP55, insulation class F and is thus most suited for rugged, continuous duty industrial application, with highest efficiency.

HIGH EFFICIENCY COOLING

The cooling system for both air and oil is designed in a way that the compressor can efficiently operate even at high ambient temperature of 45°C.

TECHNICAL DATA - FIX SPEED COMPRESSOR :

Machine Model FAS-15 FAS-18 FAS-22 FAS-30 FAS-37 FAS-45 FAS-55 FAS-75
Cooling Type Air -cooled
5 kg/cm² (g) 108 131 145 212 263 304 415 540
Working pressure/kg/cm Free Air Delivery CFM 7 kg/cm² (g) 95 117 129 191 237 280 378 487
8 kg/cm² (g) 85 106 127 184 222 268 339 459
10 kg/cm² (g) 72 92 120 170 205 244 311 413
12 kg/cm² (g) 69 85 106 148 187 222 286 362
14 kg/cm² (g) 57 71 92 124 154 191 237 311
14 kg/cm² (g) 57 71 92 124 154 191 237 311
16 kg/cm² (g) 51 60 78 102 134 171 207 279
Electric Motor Power (KW) 15 18.5 22 30 37 45 55 75
Starting method Star-Delta
Voltage/ Frequency (V/Hz) 400V,50Hz
Protection Level IP 55
Insulation Class F Class
Motor Efficiency IE3
Drive Belt Driven Direct Driven
Noise(dBA) 70 +/-3 72 +/-3 75 +/-3
Oil Carryover (ppm) ≤3
Outlet(Inch) 3/4" 1-1/4" 1-1/2" 2"
External Dimension Length(mm) 880 1050 1000 1400 2250
Width(mm) 830 880 1250 1100 1344
Height(mm) 1075 1260 1310 1600 1694
Weight(kg) 400 500 570 850 880 1080 2150 2250
Machine Model FAS-90 FAS-110 FAS-132 FAS-160 FAS-185 FAS-200 FAS-220 FAS-250
Cooling Type Air -cooled
5 kg/cm² (g) 622 812 975 1123 1254 1377 1430 1660
Working pressure/kg/cm Free Air Delivery CFM 7 kg/cm² (g) 565 742 890 1014 1130 1240 1289 1501
8 kg/cm² (g) 537 700 848 975 1074 1183 1218 1483
10 kg/cm² (g) 480 600 742 869 968 1067 1130 1434
12 kg/cm² (g) 434 540 646 759 876 936 1042 1278
14 kg/cm² (g) 374 466 554 653 752 805 897 1098
16 kg/cm² (g) 350 408 487 572 653 706 777 936
Electric Motor Power (KW) 90 110 132 160 185 200 220 250
Starting method Star-Delta
Voltage/ Frequency (V/Hz) 400V,50Hz
Protection Level IP 55
Insulation Class F Class
Motor Efficiency IE3
Drive Direct Driven
Noise(dBA) 75 +/-3 82 +/-3 85 +/-3
Oil Carryover (ppm) ≤3
Outlet(Inch) 2" DN80" DN100"
External Dimension Length(mm) 2250 2600 2900 3750
Width(mm) 1344 1750 1600 2150
Height(mm) 1694 1850 2350 2100
Weight(kg) 2450 3050 3250 4050 4300 4450 5000 5200
  • The data & performance were recorded in accordance with latest ISO 1217 standard.
  • The sound level was measured in accordance with PNEUROP/CAGI standard.
  • Water cooled options available, details on request.
  • VFD with Star-Delta bypass option available, details on request.
  • Tank mounted & Ultrapack models are also available for 15-22 Kw with 500L tank, details on request.
  • Tank mounted & Ultrapack models are also available for 15-22 Kw with 500L tank, details on request.

ENERGY SAVINGS ARE SMART SAVINGS

Take control of your energy savings with our optional Energy Management System, which includes the controller, variable-speed drive, and air end to create greater overall efficiency. This innovative design maximizes energy savings and reduces overall operating costs.

INTELLIGENT VARIABLE SPEED DRIVE

One of the ways in FAS Series compressors maximizes energy savings is with a variable speed drive (VSD). The VSD allows you to match your energy usage to current system demands, eliminating the need to overpressure the system, so you'll save money by not wasting energy.

In addition, the softstarting capability of firstAir' VSD reduces inrush current requirements, decreasing your power demand and, of course, increasing your energy savings.

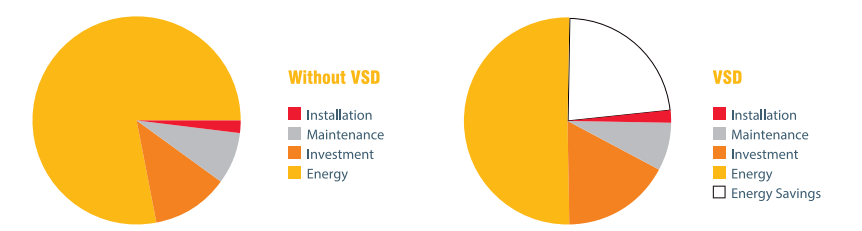

FAS SERIES WITH VSD LIFE CYCLE COSTS OVER 5 YEARS

  • The VSD-time-proven directly coupled design-offers faster response and greater operational efficiency
  • Variable operation slows air end speed, which lowers energy costs and reduces noise
  • Matching the operating speed with changes in demand reduces component wear
  • The VSD enhances quality by stabilizing air pressure at ± 0.1 kg/cm²
  • Built-in DC choke protects against harmonic disturbances and eliminates the need to source additional corrective devices.

ENERGY SAVINGS WITH VSD COMPARING LOAD/NO-LOAD POWER CONSUMPTION

TECHNICAL DATA - VFD COMPRESSOR

Machine Model FASV-15 FASV-18 FASV-22 FASV-30 FASV-37 FASV-45 FASV-55 FASV-75
Cooling Type Air -cooled
5 kg/cm² (g) 43-108 52-131 58-145 85-212 105-263 121-304 166-415 216-540
Working pressure/kg/cm² Free Air Delivery CFM 7 kg/cm² (g) 38-95 47-117 52-129 76-191 95-237 110-280 151-378 195-487
8 kg/cm² (g) 34-85 42-106 51-127 74-184 89-222 107-268 136-339 184-459
10 kg/cm² (g) 29-72 37-92 48-120 68-170 82-205 98-244 124-311 165-413
12 kg/cm² (g) 28-69 34-85 42-106 59-148 75-187 89-222 114-286 145-362
14 kg/cm² (g) 23-57 28-71 37-92 49-124 61-154 76-191 95-237 124-311
16 kg/cm² (g) 20-51 24-60 31-78 41-102 54-134 69-171 83-207 112-279
Electric Motor Power (KW) 15 18.5 22 30 37 45 55 75
Starting method VFD
Voltage/ Frequency (V/Hz) 400V,50Hz
Protection Level IP 55
Insulation Class F Class
Motor Efficiency IE3
Drive Belt Driven Direct Driven
Noise(dBA) 75 +/-3 70 +/-3 72 +/-3 75 +/-3
Oil Carryover (ppm) ≤3
Outlet(Inch) 3/4" 1-1/4" 1-1/2" 2"
External Dimension Length(mm) 960 1140 1000 1400 2250
Width(mm) 930 880 1250 1100 1344
Height(mm) 1075 1260 1310 1600 1694
Weight(kg) 425 530 600 900 930 1120 2220 2350
Machine Model FASV-90 FASV-110 FASV-132 FASV-160 FASV-185 FASV-200 FASV-220 FASV-250
Cooling Type Air -cooled
5 kg/cm² (g) 249-262 325-812 390-975 449-1123 501-1254 551-1377 572-1430 664-1660
Working pressure/kg/cm² Free Air Delivery CFM 7 kg/cm² (g) 226-565 297-742 356-890 406-1014 452-1130 496-1240 516-1289 600-1501
8 kg/cm² (g) 215-537 280-700 339-848 390-975 430-1074 473-1183 487-1218 593-1483
10 kg/cm² (g) 192-480 240-600 297-742 348-869 387-968 427-1067 452-1130 574-1434
12 kg/cm² (g) 174-434 216-540 258-646 304-759 350-876 374-936 417-1042 511-1278
14 kg/cm² (g) 150-374 186-466 222-554 261-653 301-752 322-805 359-897 439-1098
16 kg/cm² (g) 140-350 163-408 195-487 229-572 261-653 283-706 311-777 374-936
Electric Motor Power (KW) 90 110 132 160 185 200 220 250
Starting method VFD
Voltage/ Frequency (V/Hz) 400V,50Hz
Protection Level IP 55
Insulation Class F Class
Motor Efficiency IE3
Drive Direct Driven
Noise(dBA) 75 +/-3 82 +/-3 85 +/-3
Oil Carryover (ppm) ≤3
Outlet(Inch) 2" DN80" DN100"
External Dimension Length(mm) 2250 2600 2900 3750
Width(mm) 1344 1750 1600 2150
Height(mm) 1694 1850 2350 2100
Weight(kg) 2520 3150 3350 4200 4450 4600 5300 5500
  • The data & performance were recorded in accordance with latest ISO 1217 standard. The data & performance were recorded in accordance with latest ISO 1217 standard.
  • The sound level was measured in accordance with PNEUROP/CAGI standard. The sound level was measured in accordance with PNEUROP/CAGI standard.
  • Water cooled options available, details on request.
  • VFD with Star-Delta bypass option available, details on request.
  • Tank mounted & Ultrapack models are also available for 15-22 Kw with 500L tank, details on request.
  • Due to continous engineering improvements, above features are subject to change without prior notice.
