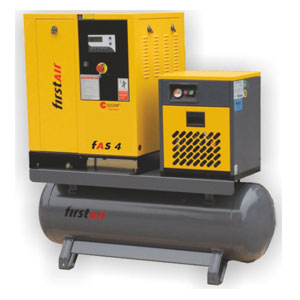

The FAS product range includes air cooled, single stage silenced and packages screw compressors in the power range of 4 11kW. These compressors are designed for industrial application and 24x7 continuous duty. All models are driven by highly efficient IE3 efficiency class electric motors
As an option, FAS compressors are available with pre-assembled accessories like :

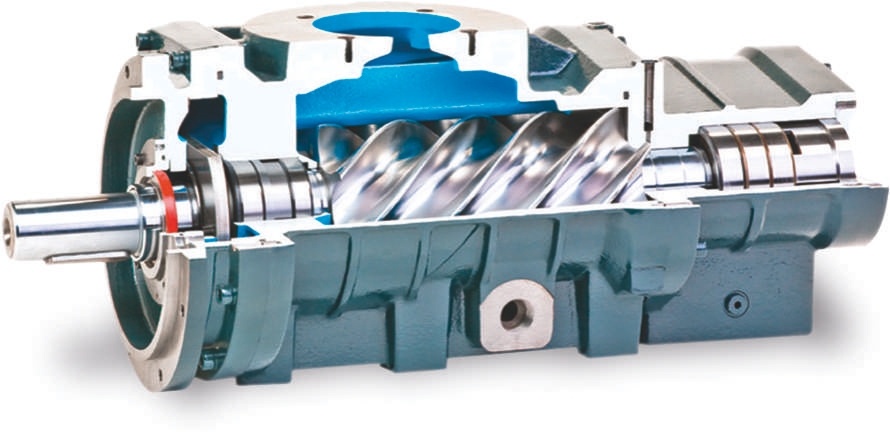

High quality components in combination with decades of experience in building air ends ensure durability with constantly high efficiency.

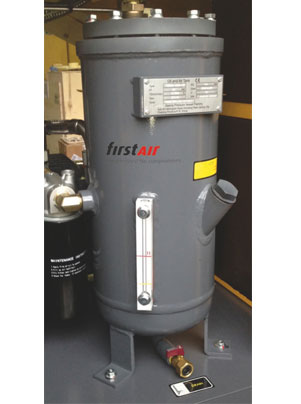

The large oil tank is equipped with all necessary connections and safety installations and therefore ensures the highest operational safety. The internal high efficiency oil separator guarantees excellent compressed air quality with a remaining oil content of 3mg/m³.
Through an inspection glass the oil level can be controlled at all times. Service can be conducted quickly and safely-the inlet neck as well as the oil drain valve can be easily accessed.
In all models a high performance suction filter is installed. Sucked particles are filtered in two stages: first by centrifugal forces and second by a high efficiency filter element.
The driving motor conforms to energy efficiency class IE3, protection class IP55, insulation class F and is thus most suited for rugged, continuous duty industrial application, with highest efficiency.
The cooling system for both air and oil is designed in a way that the compressor can efficiently operate even at high ambient temperature of 45°C.
| Machine Model | FAS-4-11B Base Mounted | FAS-4-11T Tank Mounted | FAS-4-11A UltraPack | FAS-4-11D Skid mounted with Dryer |
|---|---|---|---|---|
| Air compressor unit | ||||
| Refrigerated air dryer | ||||
| Pre Filter | ||||
| Post Filter | ||||
| Air receiver |
| Machine Model | FAS-4 Base Mounted | FAS-B | FAS-8 | FAS-11 | FAS-11(HE) | ||
|---|---|---|---|---|---|---|---|
| Cooling Type | Air -cooled | ||||||
| 7 kg/cm² (g) | 19 | 28 | 39 | 62 | 76 | ||
| Working pressure/Free Air | 8 kg/cm² (g) | 18 | 26 | 36 | 58 | 67 | |
| 10 kg/cm² (g) | 14 | 23 | 34 | 53 | 59 | ||
| 12 kg/cm² (g) | 12 | 18 | 29 | 49 | 54 | ||
| 14 kg/cm² (g) | 11 | 15 | 25 | 42 | 48 | ||
| 16 kg/cm² (g) | 9 | 13 | 21 | 35 | 40 | ||
| Electric Motor | Power (KW) | 4 | 5.5 | 7.5 | 11 | 11 | |
| Starting method | Star-Delta | ||||||
| Voltage/ Frequency (V/Hz) | 400V,50Hz | ||||||
| Protection Level | IP 55 | ||||||
| Insulation Class | F Class | ||||||
| Motor Efficiency | IE3 | ||||||
| Drive | Belt-Driven | ||||||
| Noise(dBA) | 65 +/-3 | 68 +/-3 | |||||
| Oil Carryover (ppm) | <3< /td> | ||||||
| Discharge temperature (after ooler) (°C) | ≤Ambient temperature+15°C | ||||||
| Lubricant Capacity(L) | 6 | 8 | |||||
| Outlet(Inch) | G1/2 | G3/4 | |||||
